Skywalker V2 15A-100A Programming With LED Program Card

What you need:

• Skywalker V2 ESC
• Battery for ESC
• LED Program Card
• Programming Chart in users manual

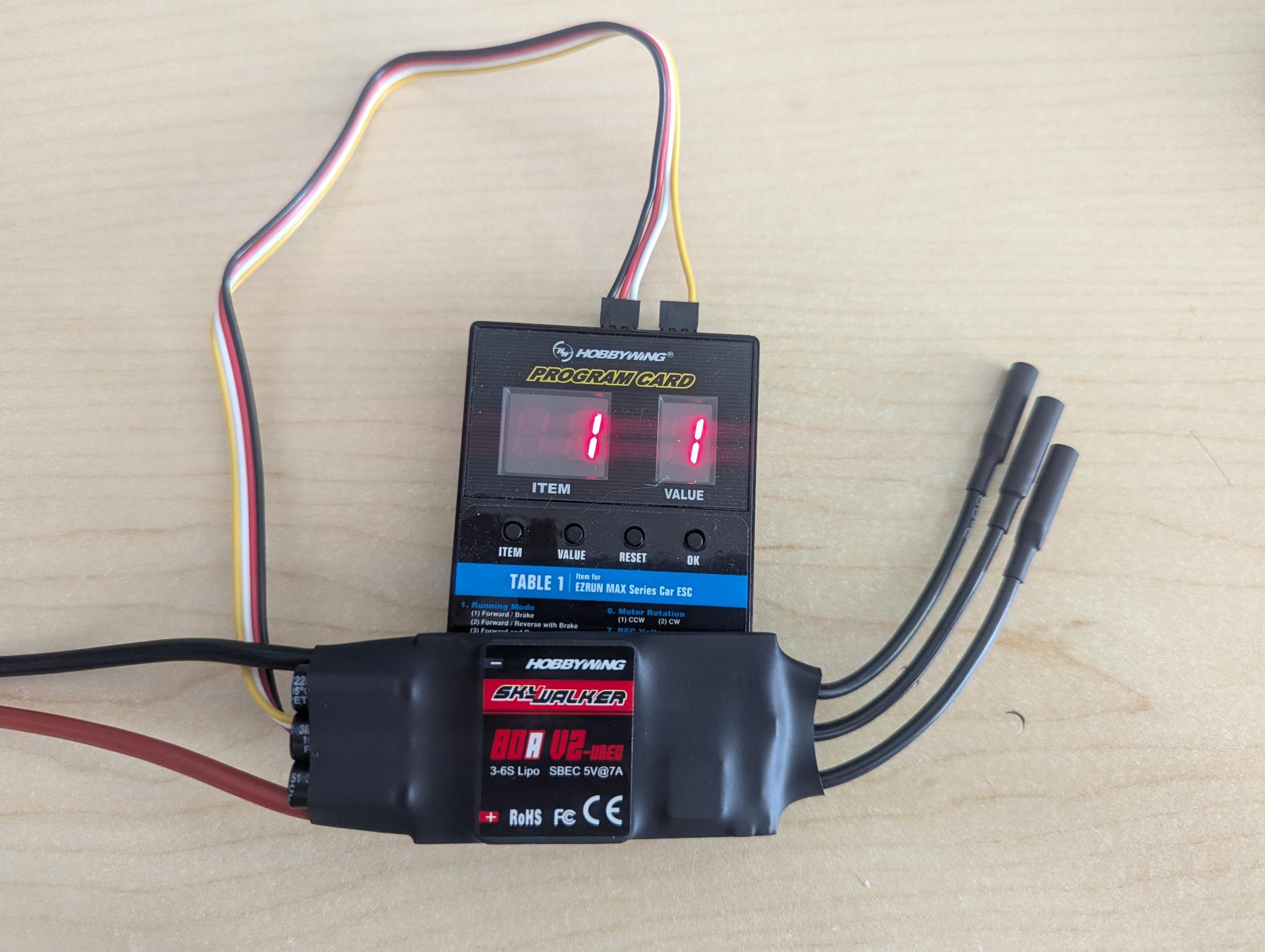

Start by plugging the throttle cable into the plug labeled with (-,+,   ) lining up the black wire with the -.

Then plug the single yellow wire into the programming port labeled with (-,+,Ω) lining up the yellow wire  with the Ω symbol.

Then use the programming chart in the Users Manual to program the settings of the ESC.

PLEASE NOTE: The Skywalker ESC Line can also be programmed with your transmitters throttle channel.
