X Series Firmware Update Instructions.

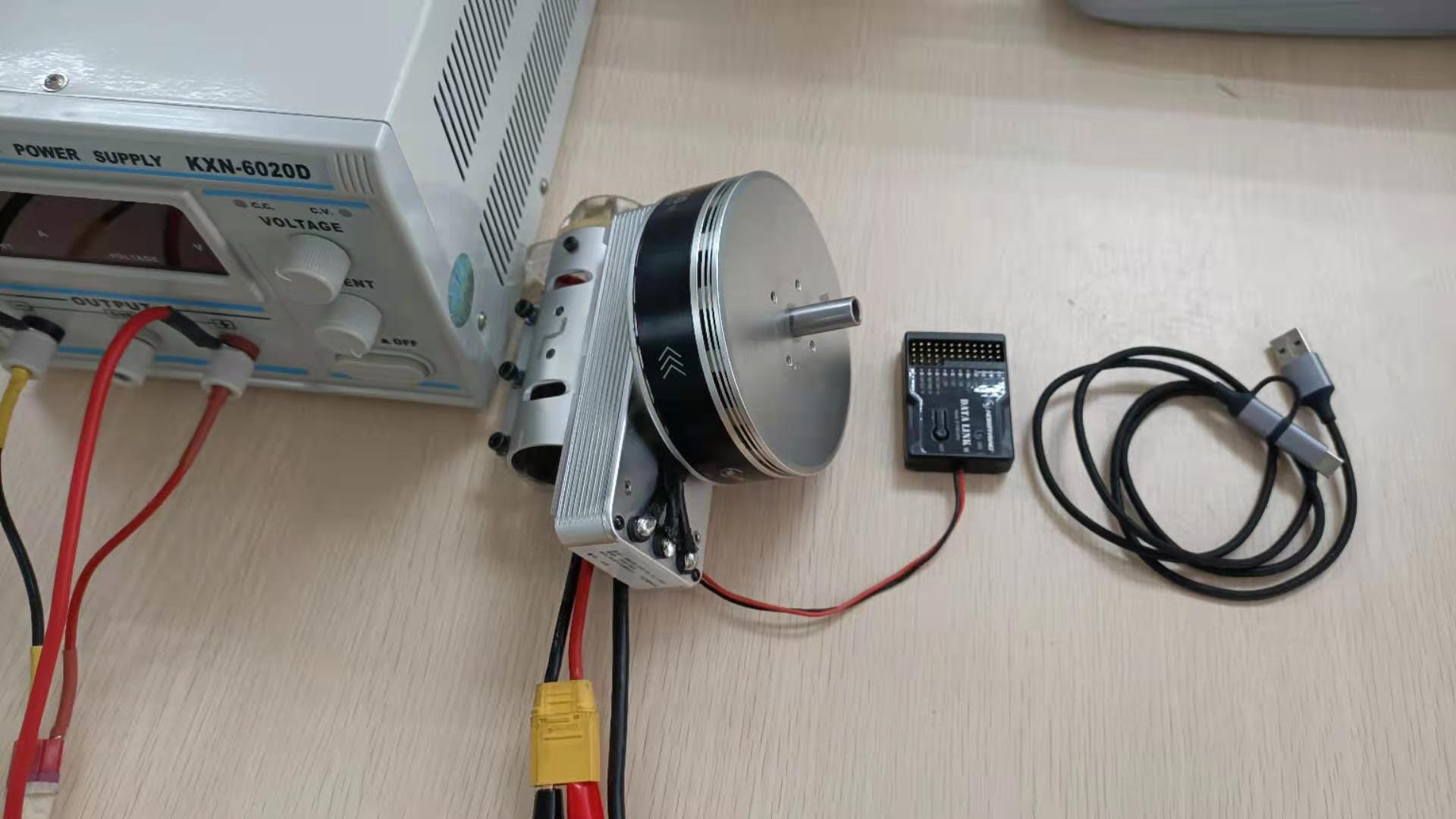

1. Gather Required Items:

• X9 ESC and Motor Combo or other X Series combo.
• DataLink V2 Module
• Battery (24-61V)
• USB Cable

2. Software Setup: (Download APP)

• Download the DataLink Software (APP).
• Connect the ESC to the DataLink module.
• Connect the DataLink V2 module to your PC using the provided USB cable.

3. Check Datalink Firmware:

Open the DataLink Software and check for firmware updates.

4. Configure Port Type:

• Within the software, select the Correct Port Type (e.g., Uart->FAST).
• Choose the "Scanning" option.

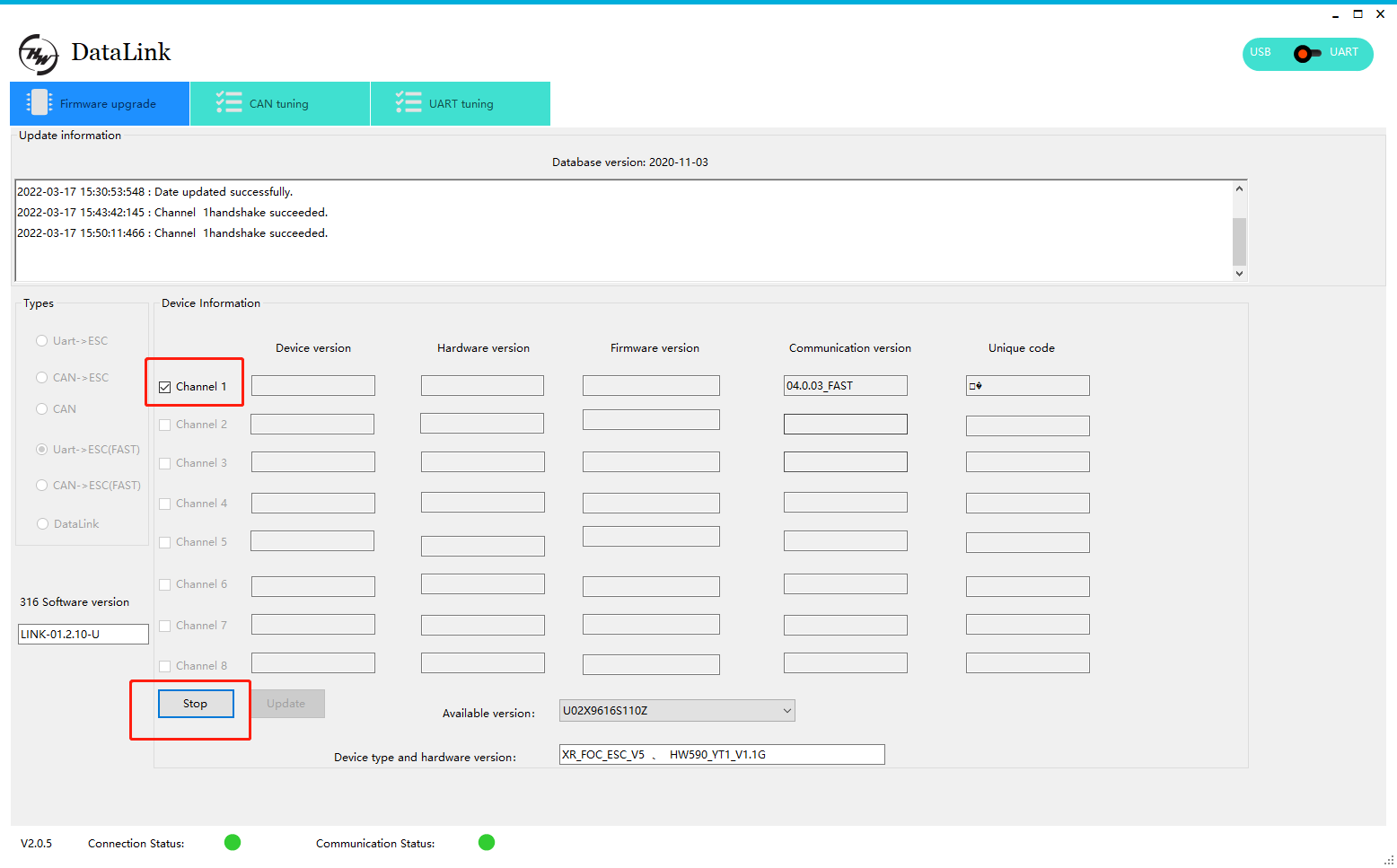

5. ESC Power-Up:

• Power up the ESC.
• As soon as the Channel appears, click the Stop button.
• Check for available firmware update versions, on the “available version” tab.

6. Firmware Update:
- Once you've chosen the desired firmware version, select "Update" to begin the firmware update process.

7. Confirm Firmware:

• After the update, perform another scan to confirm the updated firmware version of the ESC.

By following these steps, you will successfully set up and update the firmware for your X9 using DataLink V2
